Special Purpose Machines

Vast experience of working with auto and auto ancillary units, enable our team to perfectly visualize the bottlenecks. Bottlenecks may be in productivity, quality, part consistency and skill dependency. Every machine is designed with specific approach to resolve either one or many of these issues. The solution also takes into consideration the floor space available, since the Special Purpose Machines are normally deployed in existing production facilities.

Simplistic approach helps reduce cost, however, machines with up to 8 servo motion axes and as many as 4 welding guns operating simultaneously have also been deployed for more complex and demanding applications. Reduced power consumption is priority and fixture mounted guns with transformers or robot integrated transguns are preferred over long secondary bus bars wherever possible.

Our experience of working with various sheet metal component manufacturing companies, ranging from small workshops to large automotive, industrial, aerospace and machine tool manufacturing companies, has enabled us to address typical manufacturing challenges faced by these industries.

The challenge varies from situation to situation. At one place it may be inconsistency inherent to the input parts, but a task to maintain consistency in output part, by way of incorporating detection and correction mechanism built into the machine. Some other customer might be facing an issue of human skill dependency, and the machine needs to address the issue of de-skilling. Some more other customers may be facing challenge to achieve targeted output production within the available time and machine is then designed to provide expected productivity. Shop floor space coverage, low power and utility consumption, use of industry standard parts, ease of availability of bought-out spares are some of the other considerations that makes the project value rewarding for the customer in long run.

Machines are conceived to be adaptable to future changes in product design at the concept stage itself, wherever possible. Cost benefit analysis is done based on flexibility and investment required. This ensures that customer's investment, its costs and returns are predictable.

User friendly man-machine interface, robust construction, ease of maintenance are fundamental design rules.

MULTI SPOT WELDER FOR 12 SPOTS

multi spot welder 12spots

  • Application
    Joining Inner and Outer of Motorcycle Petrol Tank.
  • Purpose of automation
    Very high productivity, Critical Geometry
  • No of weld Heads
    10 C type and 2 X type.
  • Cycle Time
    20 sees.

TWO AXIS ROBOTIC APPLICATION FOR 16 SPOTS

two axis robotic application 16spots

  • Application
    Joining of reinforcement to Three Wheeler Chassis.
  • Purpose of automation
    Invisible spot location on chassis line.
  • No of weld Heads
    01 C type Weld Gun
  • Cycle Time
    38 sees

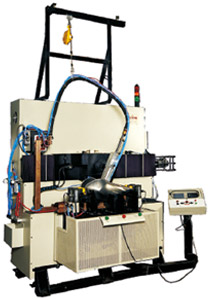

3 AXIS ROBOTIC APPLICATION FOR 21 SPOTS

axis robotic application 21spots

  • Application
    Joining of two outer halves of motorcycle petrol tank
  • Purpose of automation
    Very high productivity, Critical Geometry, Overlap limited to only 1.5 mm.
  • No of weld Heads
    One single point Gun
  • Cycle Time
    42 sees

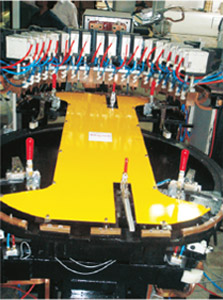

ROTARY TABLE FOR 18 SPOTS

rotary table 18spots

  • Application
    Joining of windshield reinforcement to skudo of three wheeler
  • Purpose of automation
    Very high productivity, Critical Geometry
  • No of weld Heads
    18 nos single point guns. Series Welding.
  • Cycle Time
    20 sees

MULTI SPOT WELDER FOR 4 SPOTS

multi spot welder 4spots

  • Application
    Joining of Fuel Neck to outer of Motorcycle Petrol Tank.
  • Purpose of automation
    Very high productivity, Critical Geometry
  • No of weld Heads
    02 nos
  • Cycle Time
    8 sees

MULTI SPOT WELDER FOR 18 SPOTS

multi spot welder 18spots

  • Application
    Joining of reinforcement to skudo of three wheeler-
  • Purpose of automation
    Very high productivity, Critical Geometry.
  • No of weld Heads
    18 nos single point guns. Series Welding.
  • Cycle Time
    20 sees

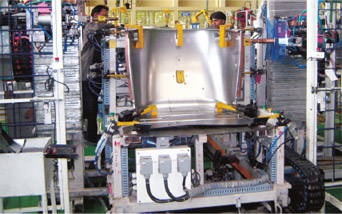

7 AXIS ROBOTIC APPLICATION FOR 38 SPOTS

axis robotic application 38spots

  • Application
    Joining of LH and RH side reinforcement to skudo and joining of Floor to Skudo.
  • Purpose of automation
    Very high productivity, Critical Geometry, Invisible spots for skudo floor joining.
  • No of weld Heads
    03 X type guns working simultaneously.
  • Cycle Time
    30 sees
